Beam & Slab Formwork

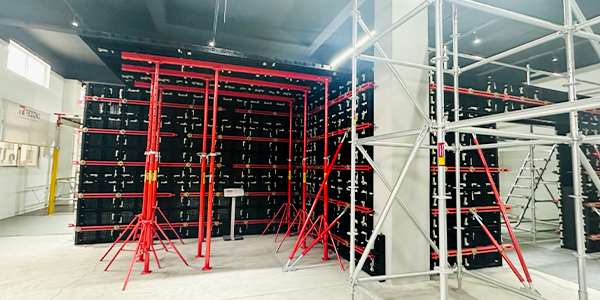

For slabs and beams we use fix beams supported by steel props and beam-prop connectors.Here is a tripod.
The working load for the steel prop is 10 KN, and the maximum support height can reach up to 4 meters.
If slab thickness is below 300mm, the distance between beams should not exceed 800mm.
For height under 4m, use H70 tripods.
For height above 4m, use H90 tripods.
The ratio between props and tripods is 3:2.
